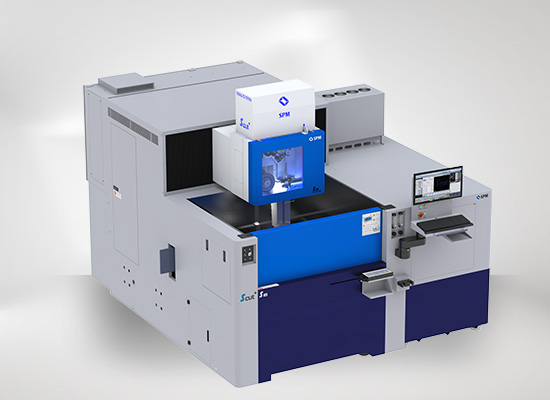

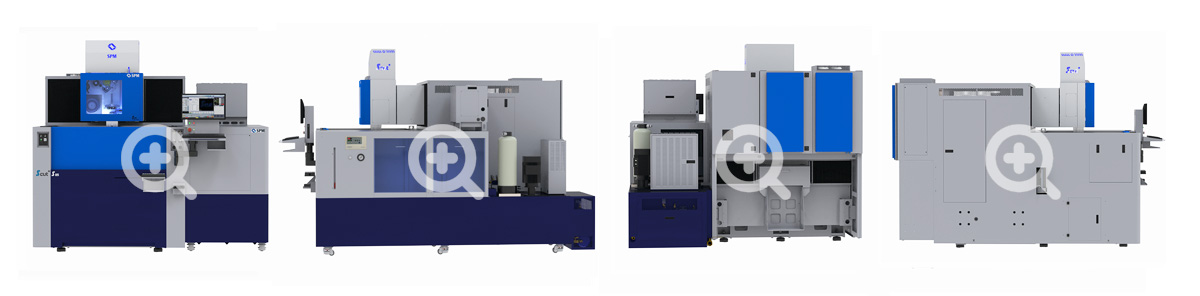

Introducing the CNC Wire Cut E.D.M Series produced by SPM.

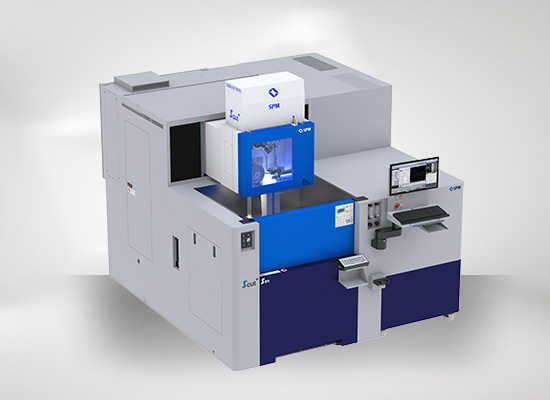

Submerged Machining

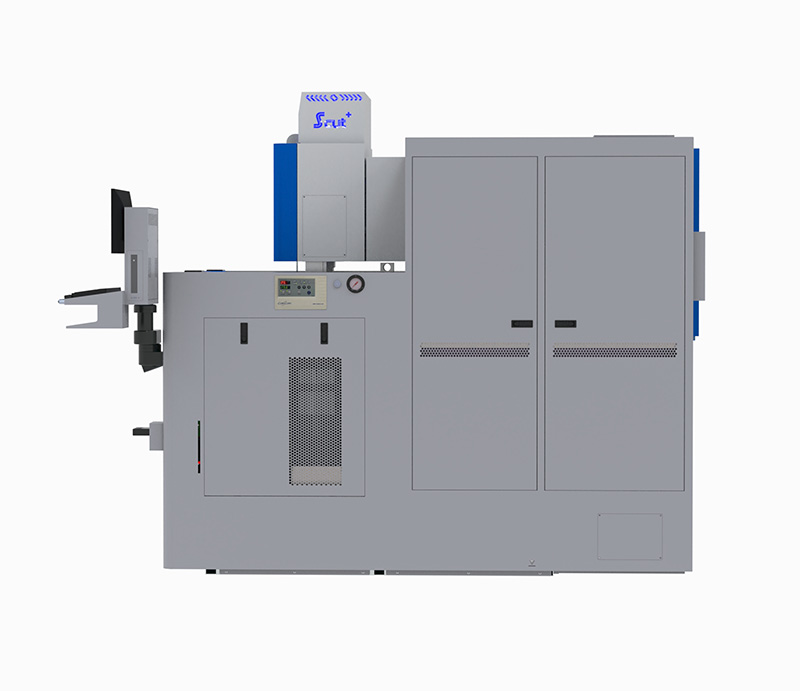

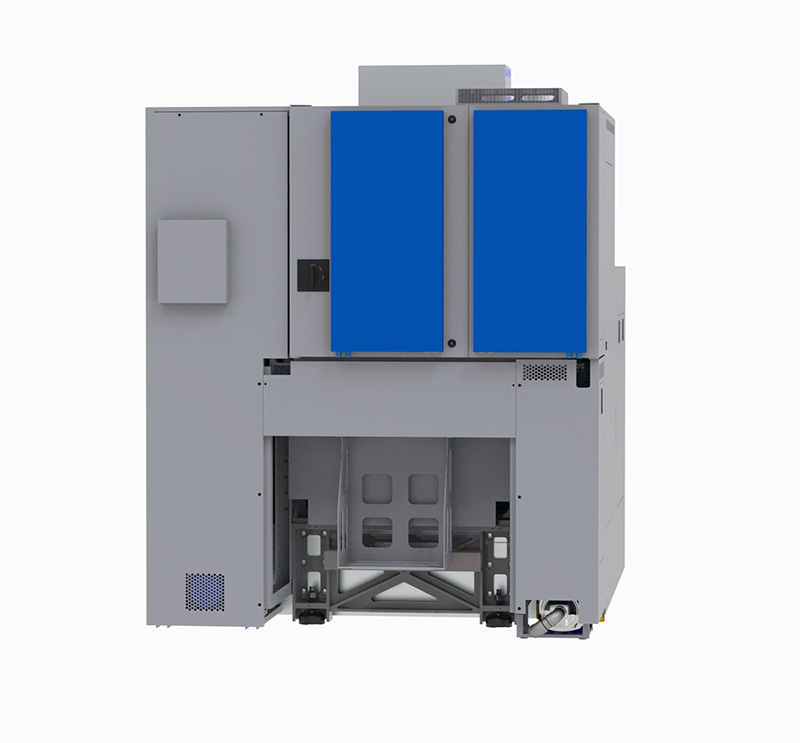

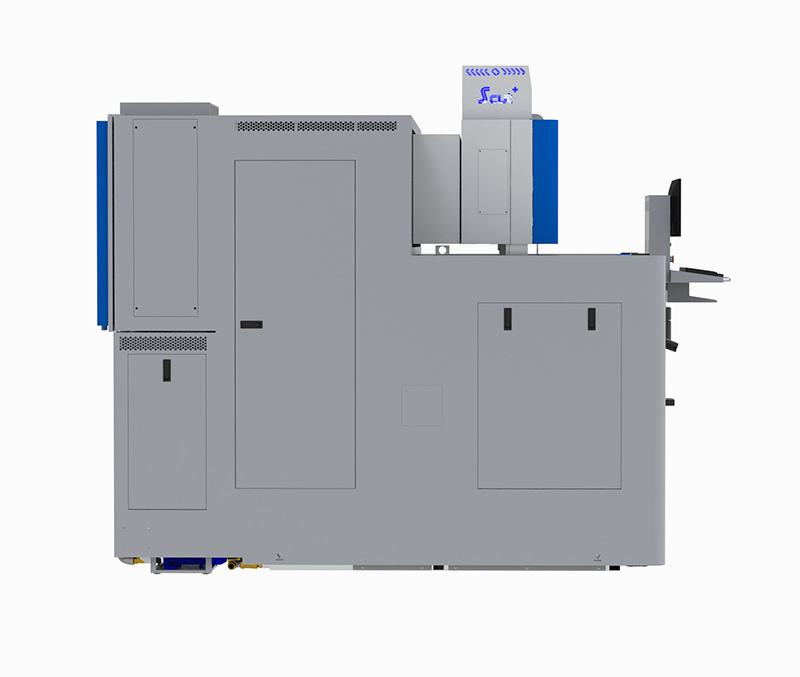

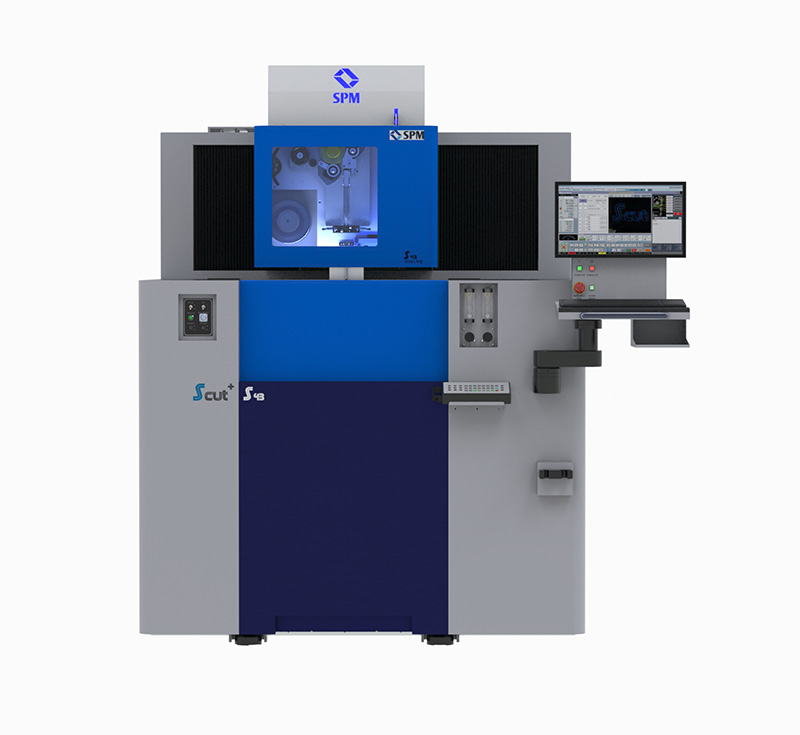

¡Ý S43


RANGE OF MACHINING





CONTROL UNIT SPECIFICATION

Title Unit
X, Y, Z travel 400 X 300 X 250 mm
U, V travel 100 X 100 (¡¾ 50) mm

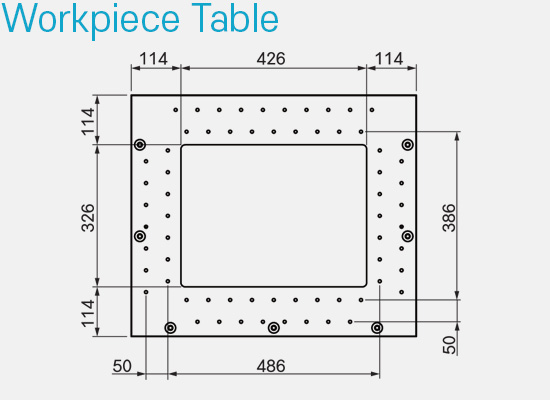

Table dimension 664 X 470 mm
Table height (from floor) 1000 mm
Work tank dimensions 856(door:768) X 770 mm
Maximum workpiece dimensions 700 X 500 X 240 mm
Common workpiece dimensions 600 X 400 X 230 mm
Maximum workpiece weight 400 kg
Title Unit
Maximum taper angle ¡¾24/100mm Degrees/t
Table rapid feed speed 1300 mm
Wire diameter 0.15 ~ 0.3 mm (0.1 ¿É¼Ç)
Wire feed speed 0 ~ 15 m/min
Wire tension 0.5 ~ 28 N

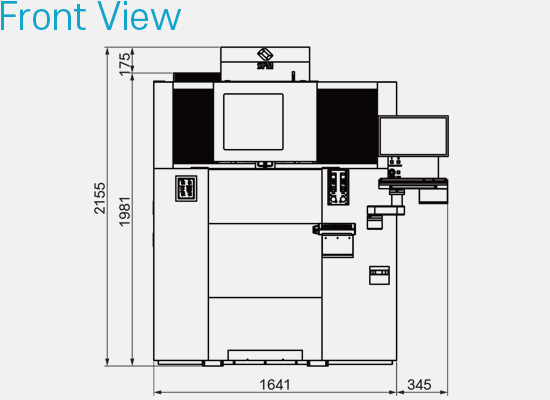

Machine dimension (WLH) 1641 X 3069 X 1981 mm
Machine unit weight 2570 kg

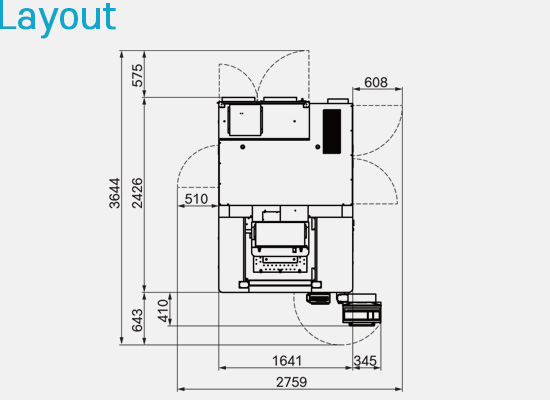

Standard layout 2759 X 3644 X 2155 mm
X,Y Linear motor / X,Y, Z Linear scale standard (U,V option) / All-In-One Machine body with the Fluid unit / Option : Outer mounted bobbin

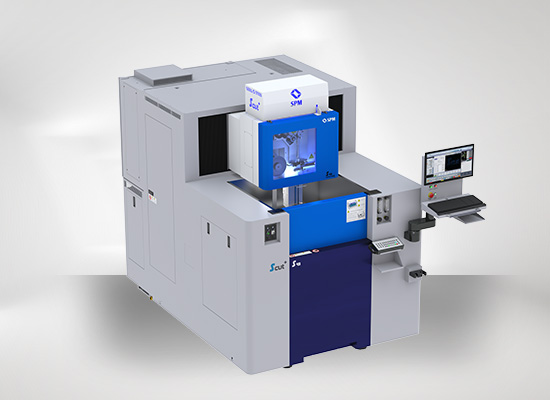

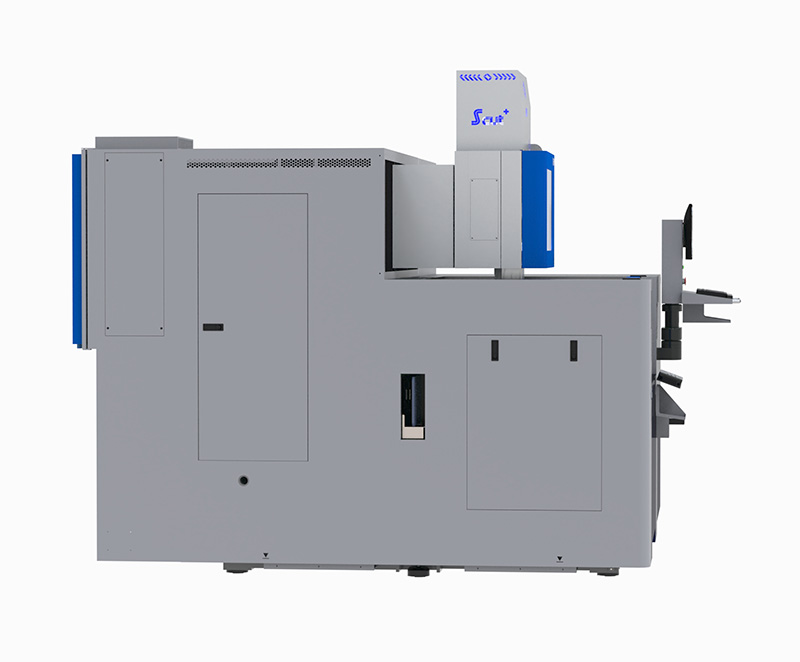

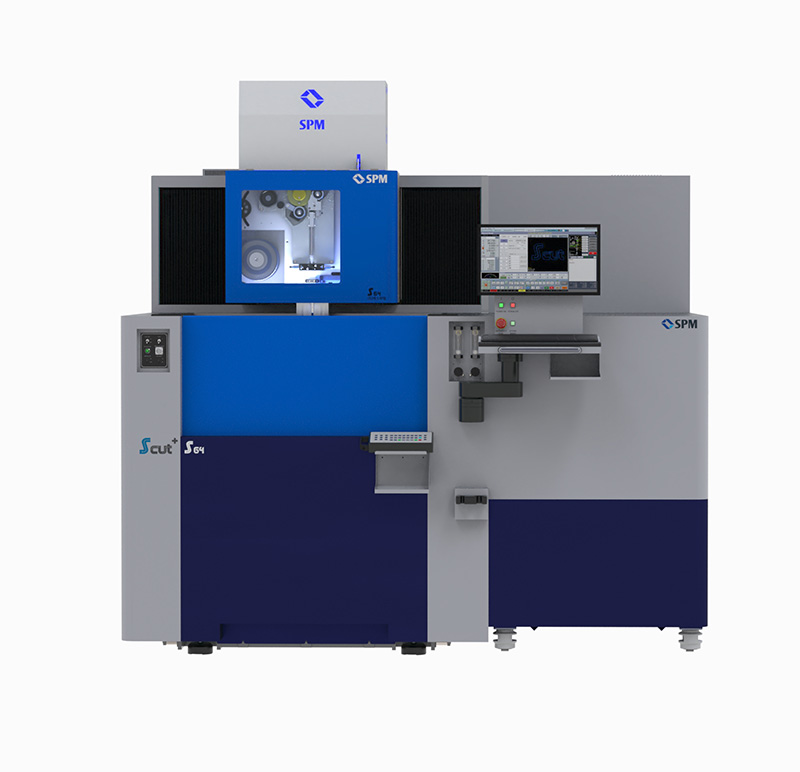

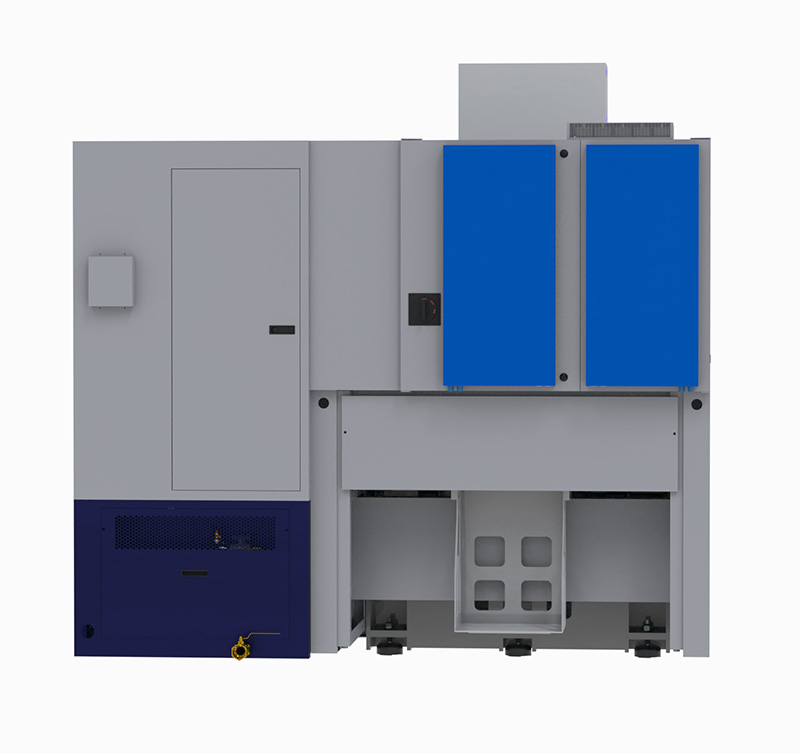

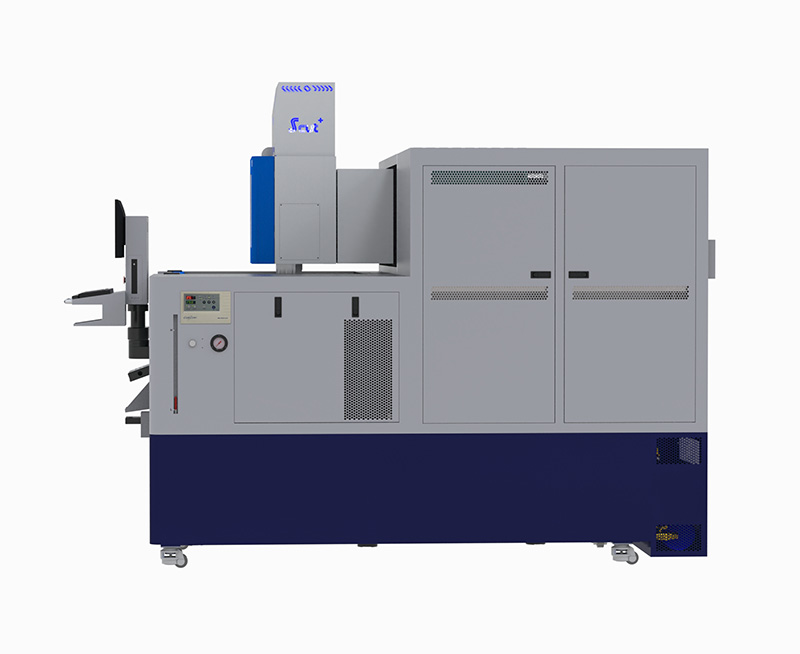

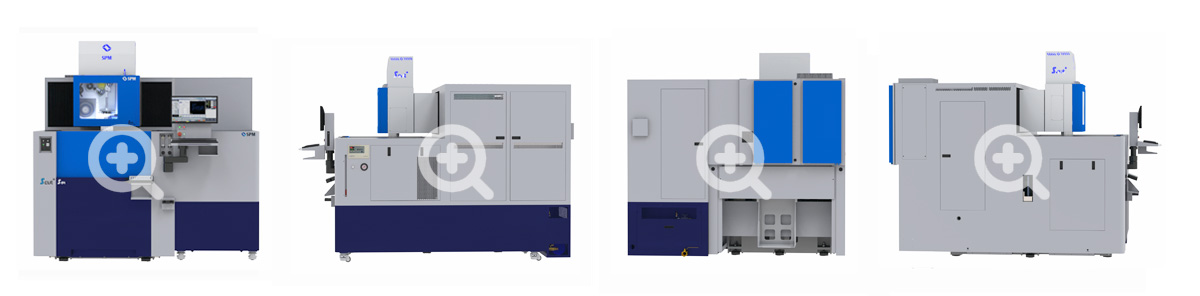

¡Ý S64


RANGE OF MACHINING





CONTROL UNIT SPECIFICATION

Title Unit
X, Y, Z trave 600 X 400 X 350 mm
U, V travel 150 X 150 (¡¾ 75) mm
Table dimension 864 X 620 mm
Table height (from floor) 900 mm
Work tank dimensions 1056(door:968) X 1139 mm
Maximum workpiece dimensions 900 X 600 X 340 mm
Common workpiece dimensions 800 X 500 X 330 mm
Maximum workpiece weight 1000 kg
Title Unit
Maximum taper angle ¡¾32/100mm Degrees/t
Table rapid feed speed 1300 mm
Wire diameter 0.15 ~ 0.3 mm (0.1 ¿É¼Ç)
Wire feed speed 0 ~ 15 m/min
Wire tension 0.5 ~ 28 N
Machine dimension (WLH) 1585 X 3275 X 1972 mm
Machine unit weight 3300 kg

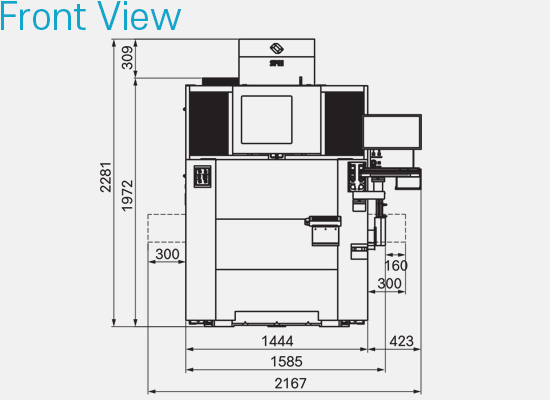

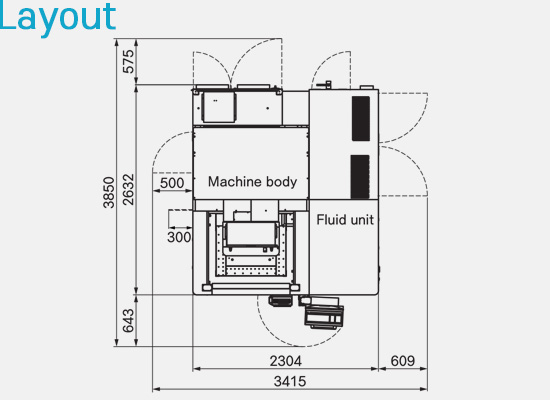

Standard layout 3415 X 3850 X 2281 mm
X,Y Linear motor/ X,Y, Z Linear scale standard (U,V option) / Option : Outer mounted bobbin

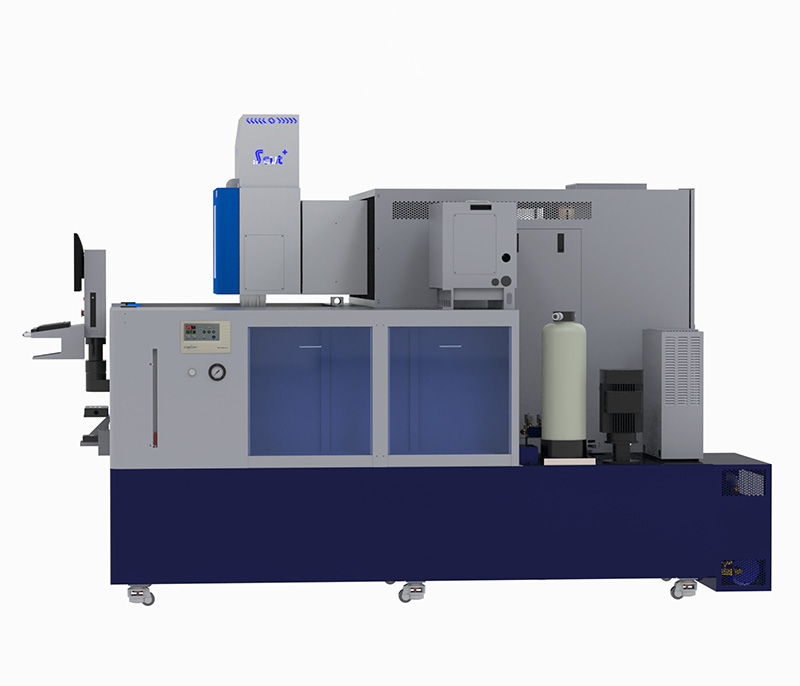

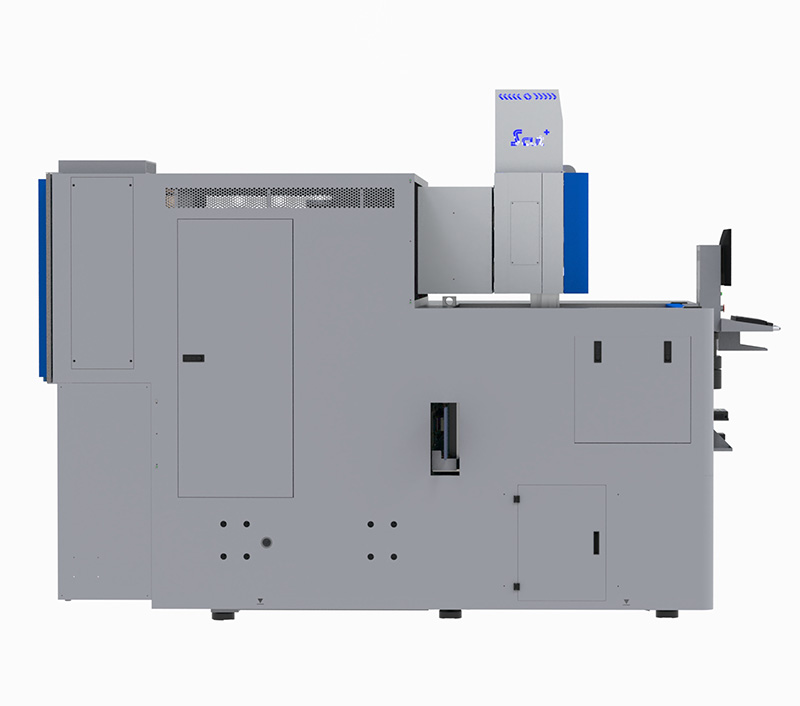

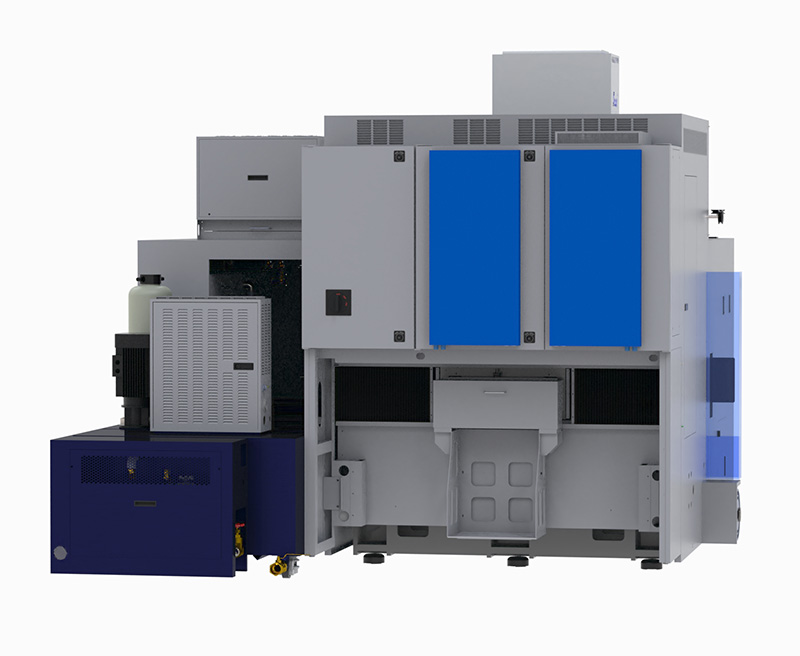

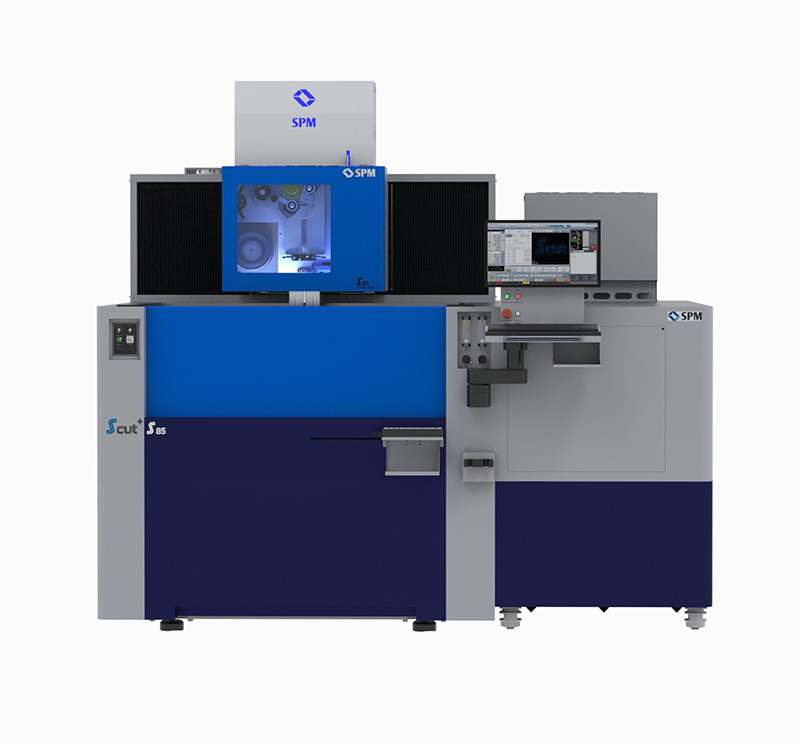

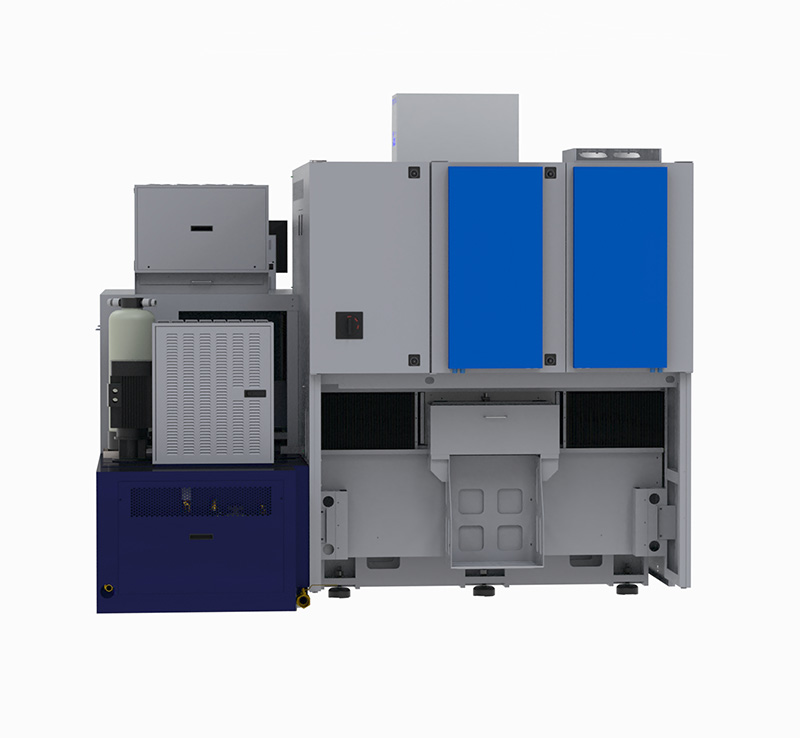

¡Ý S85




RANGE OF MACHINING





CONTROL UNIT SPECIFICATION

Title Unit
X, Y, Z travel 800 X 500 X 350mm
U, V travel 150 X 150 (¡¾ 75) mm

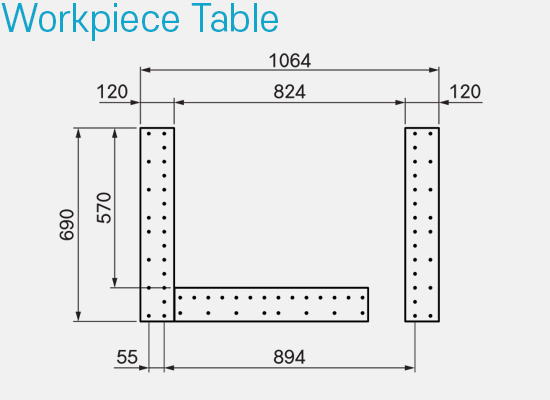

Table dimension 1064 X 690 mm
Table height (from floor) 900 mm
Work tank dimensions 1336(door:1248) X 992 mm
Maximum workpiece dimensions 1100 X 700 X 340 mm
Common workpiece dimensions 1000 X 600 X 330 mm
Maximum workpiece weight 1500 kg
Title Unit
Maximum taper angle ¡¾32/100mm Degrees/t
Table rapid feed speed 1300 mm
Wire diameter 0.15 ~ 0.3 mm
Wire feed speed 0 ~ 15 m/min
Wire tension 0.5 ~ 28 N

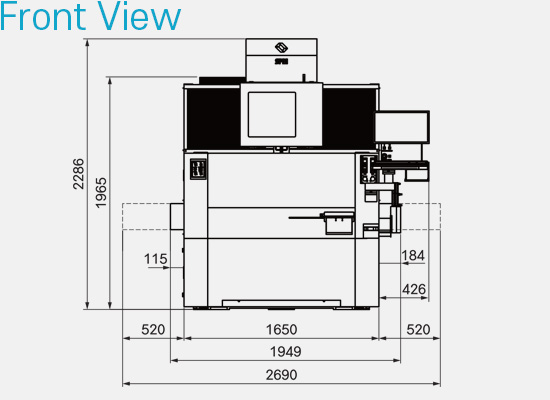

Machine dimension (WLH) 1949 X 3570 X 1965 mm
Machine unit weight 4500 kg

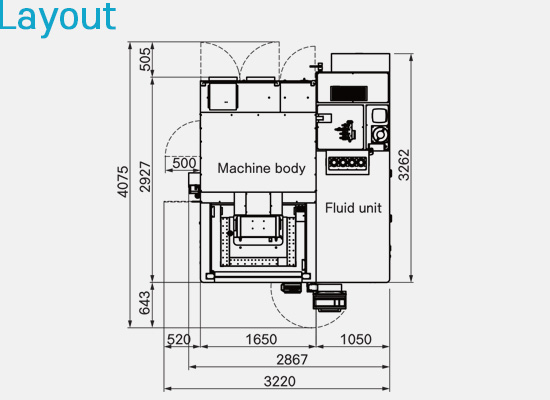

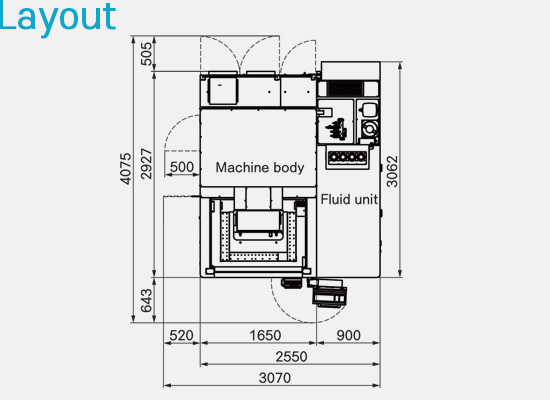

Standard layout 3070 X 4075 X 2286 mm
X,Y, Z Linear scale standard (U,V option) / Option : Outer mounted bobbin

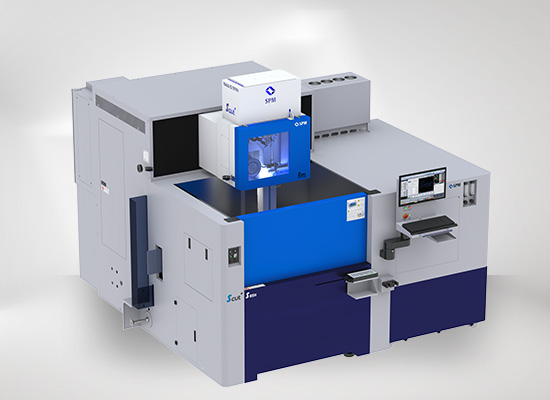

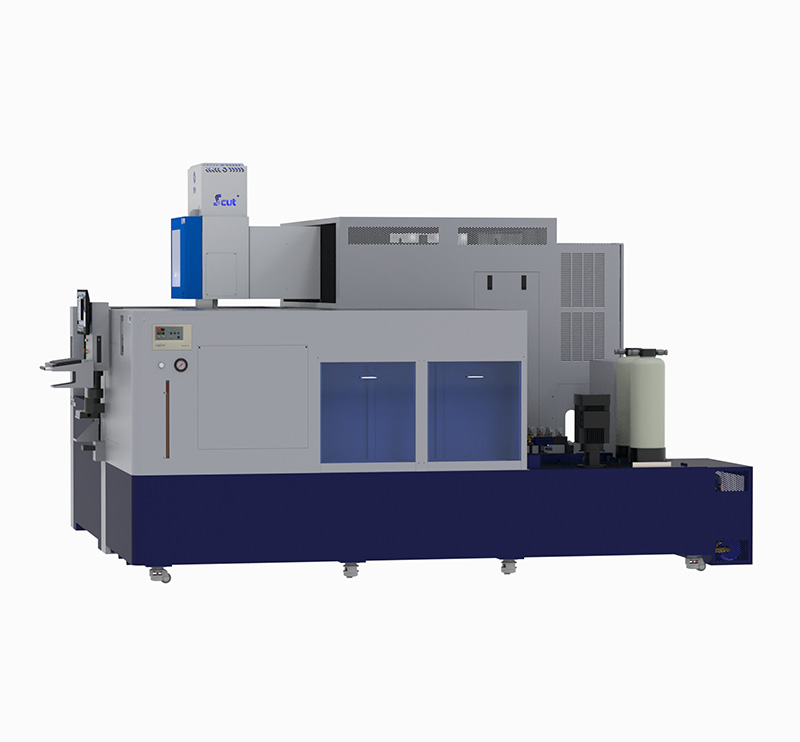

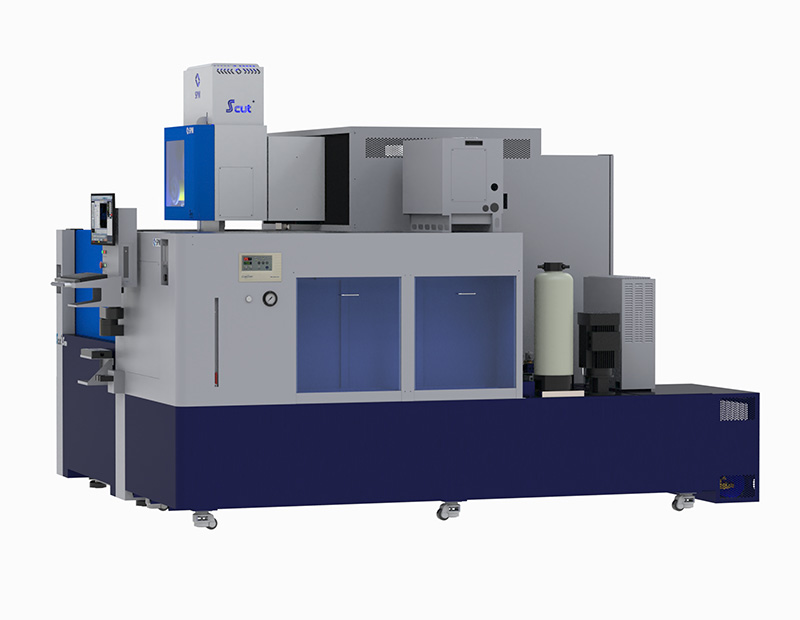

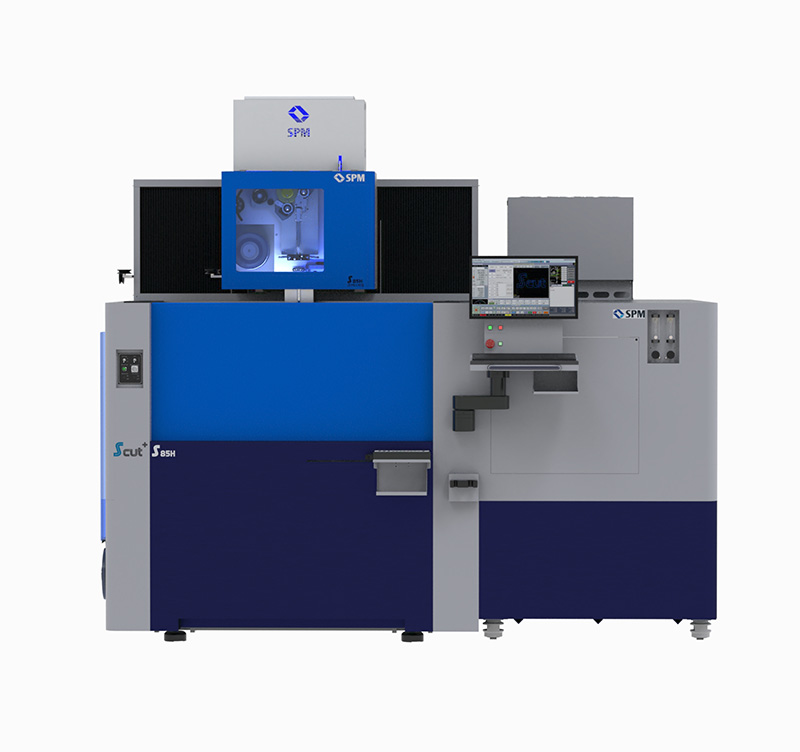

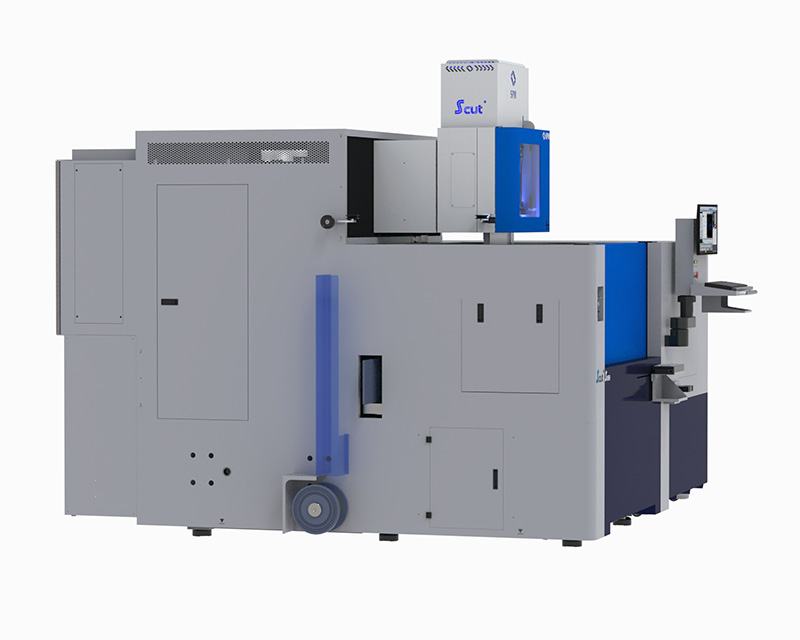

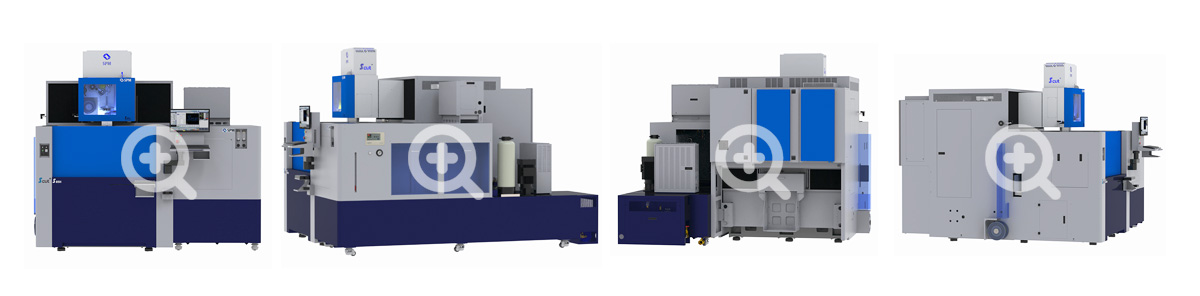

¡Ý S85H




RANGE OF MACHINING





CONTROL UNIT SPECIFICATION

Title Unit
X, Y, Z travel 800 X 500 X 500 mm
U, V travel 150 X 150 (¡¾ 75) mm

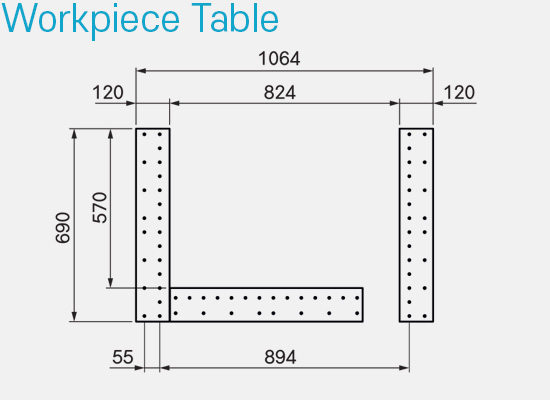

Table dimension 1064 X 690 mm
Table height (from floor) 900 mm
Work tank dimensions 1336(door:1248) X 992 mm
Maximum workpiece dimensions 1100 X 700 X 490 mm
Common workpiece dimensions 1000 X 600 X 480 mm
Maximum workpiece weight 2000 kg
Title Unit
Maximum taper angle ¡¾32/100mm Degrees/t
Table rapid feed speed 1300 mm
Wire diameter 0.15 ~ 0.3 mm
Wire feed speed 0 ~ 15 m/min
Wire tension 0.5 ~ 28 N

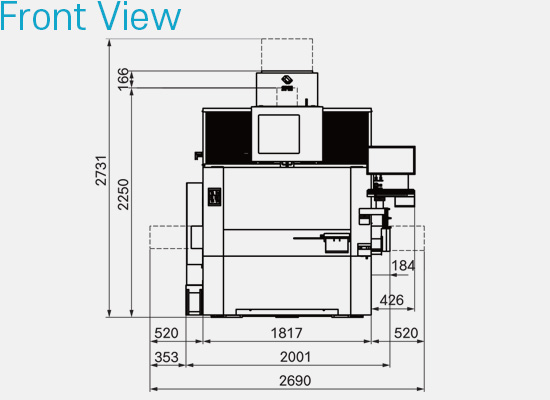

Machine dimension (WLH) 2001 X 3570 X 2250 mm
Machine unit weight 4500 kg
Standard layout 3220 X 4075 X 2731 mm
X,Y,Z Linear scale standard (U,V option) / 20kg bobbin standard

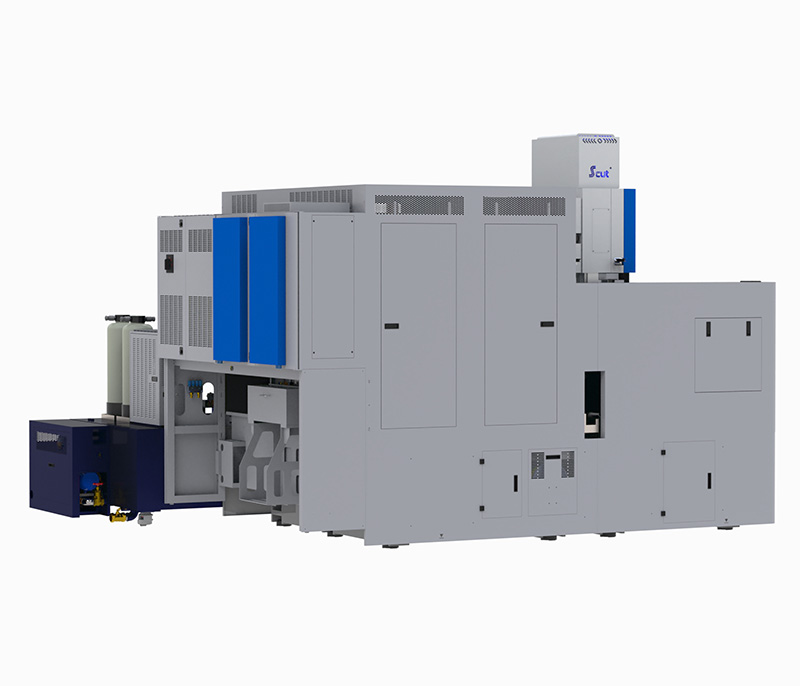

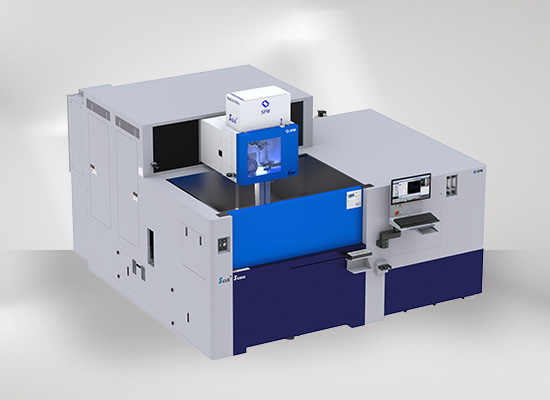

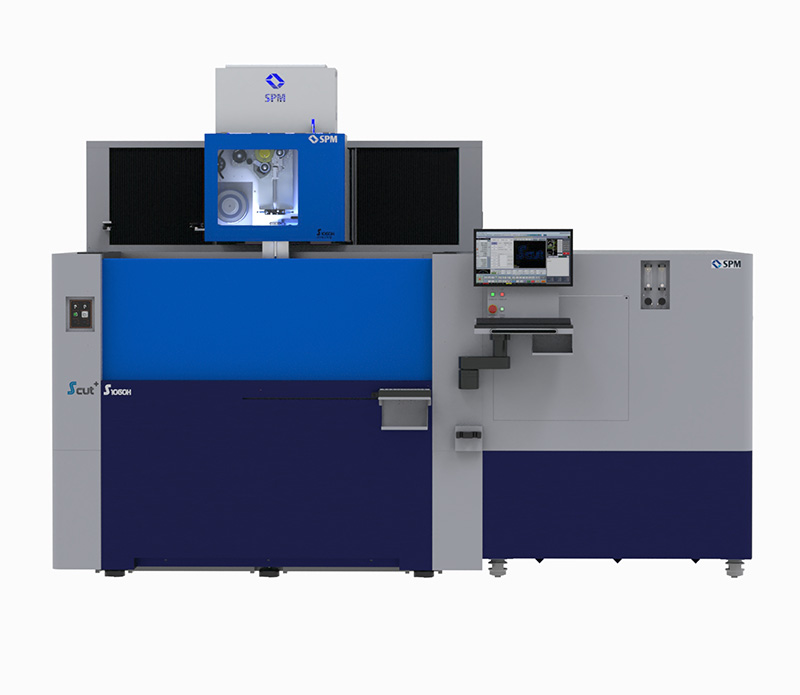

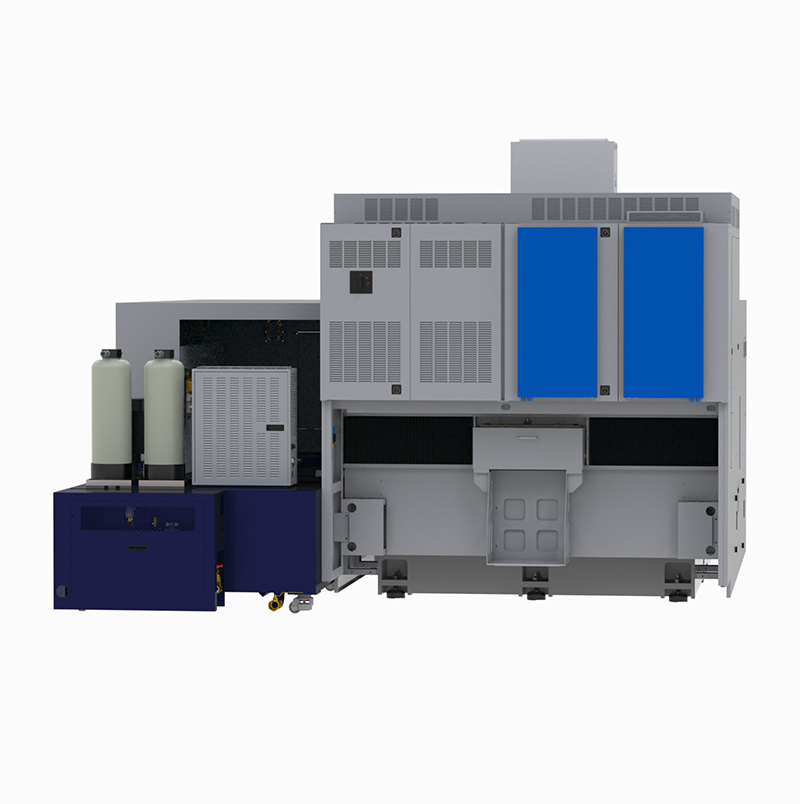

¡Ý 1060H




RANGE OF MACHINING





CONTROL UNIT SPECIFICATION

Title Unit
X, Y, Z travel 1000 X 600 X 500 mm
l U, V travel 300 X 300 (¡¾ 150) mm

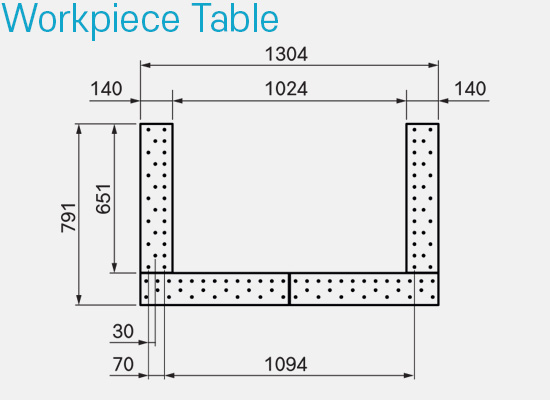

Table dimension 1304 X 791 mm
Table height (from floor) 990 mm
Work tank dimensions 1686(door:1598) X 1200 mm
Maximum workpiece dimensions 1300 X 800 X 490 mm
Common workpiece dimensions 1200 X 700 X 480 mm
Maximum workpiece weight 3000 kg
Title Unit
Maximum taper angle ¡¾20/400mm Degrees/t
Table rapid feed speed 1300 mm
Wire diameter 0.15 ~ 0.3 mm
Wire feed speed 0 ~ 15 m/min
Wire tension 0.5 ~ 28 N

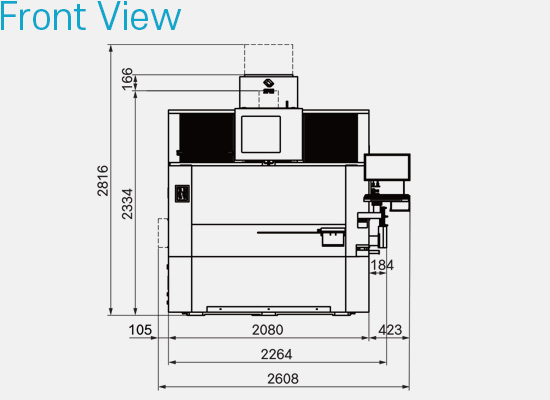

Machine dimension (WLH) 2264 X 4053 X 2334 mm
Machine unit weight 7000 kg

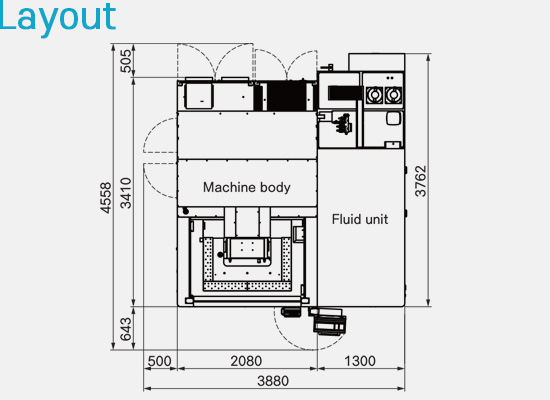

Standard layout 3880 X 4558 X 2816 mm
X,Y,U,V,Z Linear scale standard / 20kg bobbin standard
